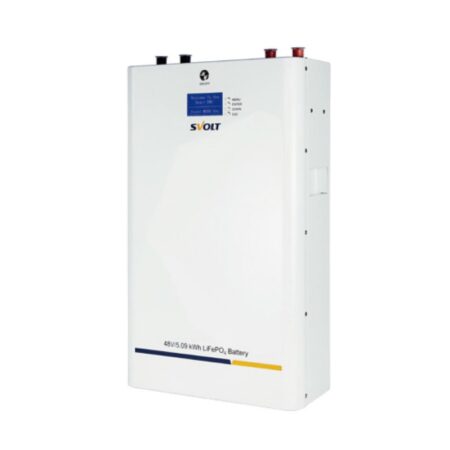

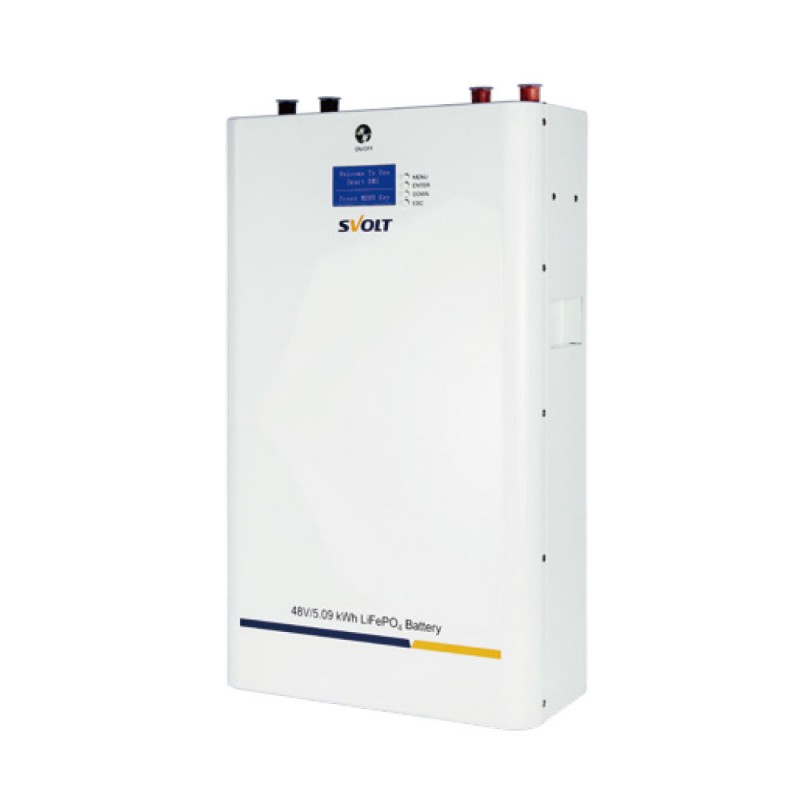

Svolt 51.2V 5.43KWh Lithium Battery

The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells.
Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
This allows superior performance, capacity, and reliability.

Features

A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Renewable Energy
7 Protection Features
Built-in Battery Management System
Mountable
5-year Warranty

Specifications

Energy: 5.43 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 106Ah
Dimensions (LxWxH): 510 x 475 x 160mm
Weight (Approx.): 45.6KGS
Terminal Type: Fast Plug In & Plug Out
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25mΩ
Efficiency – Round Trip: >97%
Self Discharge Per Month: <3%
Max Parallel Connectors: 16 Pcs
Series Connections: Not Allowed
Cycle Life (0.3C, 25°C @ 90% DOD): >6,000 cycles
Discharge Temperature: -20°C to 70°C
Charge Temperature: -5°C to 65°C
Storage Temperature: 0°C to 30°C
Bluetooth (App): Optional
LCD Screen: Yes
Heating Function: Optional

Electrical Parameters

Operating Voltage Range: 43.2V-57.6V
Recommend Charge Voltage: 56.0V±0.2V
Max Charge Voltage: 58.4V±0.2V
Recommend Charge Current: 50A
Max Continuous Charge Current: 100A
Recommend Discharge Voltage: 44.8V±0.2V
Max Discharging Voltage: 43.2V±0.2V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 150A (100ms)
